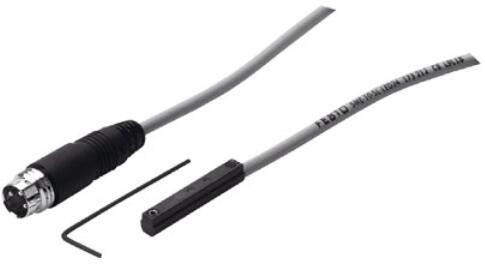

SME-10-SL-LED-24德國FESTO開關選型

設計  適用于圓形槽

符合標準  EN 60947-5-2

  RCM Mark

CE 符號 (參見符合的標準)  根據 EU-EMV 指導原則

材料備注  不含有黃銅和PTFE

測量原則  舌簧磁鐵

環境溫度  -20 ... 70 °C

開關輸出  接觸式, 雙極性

切換元件功能  常開觸點

切換值的重復能力  +/- 0,1 mm

開啟時間  <= 0.6 ms

關閉時間  <= 0.05 ms

較大切換頻率  500 Hz

較大輸出電流  100 mA

較大接點容量 DC  1 W

電壓降  0 V

短路強度  否

過載承受能力  還不可獲得

工作電壓范圍 AC  12 ... 27 V

工作電壓范圍 DC  12 ... 27 V

極性容錯保護  否

電連接  帶插頭電纜

M8x1

3針

接頭的導線引出方向  軸向

電纜長度  0.3 m

材料信息，電纜護套  TPE-U(PUR)

安裝類型  夾緊在圓形槽中

可從縱深方向插入槽內

緊固扭矩  0.1 Nm

產品重量  5 g

材料信息，殼體  黃銅

PPS

TPE-U(PU)

高合金鋼, 耐腐蝕

鍍鎳

工作狀態顯示  黃色 LED

采用彈性電纜安裝時的環境溫度  -5 ... 70 °C

防護等級  IP65

IP67

絕緣電壓  50 V

電泳強度  0.8 kV

SME 0.3米線長3芯線，M8螺紋，可旋轉
