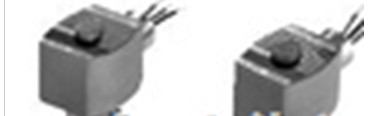

E290C52V0XEFCV1，NUMATICS兩通電磁閥

上海乾拓貿易有限公司

電話：021-69000965

傳真：021-39529830-8007

手機：17321056802 (微信就是手機號)

郵箱：[email protected]

企業QQ：2880626084

聯系人：鄭娜

? High flow due to angled seat design

? Anti-waterhammer design (fluid entry under the disc)

Connector Spade plug (cable ? 6-10 mm)

? The valves satisfy all relevant EC Directives and

 with the provisions of the DirectiveRoHS 2

Visualisation valve (switching) LED

Electrical safety (adapter AC to DC) IEC 335 (EN-IEC 60730), class 2

Electrical enclosure protection IP65 (EN 60529)

Standard voltages DC (=) : 24V ±10 %, max. ripple 5%

(EN-IEC 61131-2) AC (~) : 110V to 250V / 50-60 Hz

Actuator rotatable through 360°

Connector specification ISO 4400 / EN 175301-803, form A

Motor consumption 12 W in operation, 0 W hold

Max. peak current: 0,7 A

環境溫度范圍-10°C至+ 50°C

-10°C至+ 40°C（145°C蒸汽）

較大粘度600 cSt（mm2 / s）

執行時間<1,3 s（開）/ <1,3 s（關閉）

空氣和氣體組1＆2

水，油，液體組1＆2 -10°C至+ 90°C NBR（腈）

蒸汽達+ 145°C FPM（含氟彈性體）

? Fluid isolation between electrical actuator and valve body

? LED valves status display

? The valves satisfy Pressure Equipment Directive 2014/68/EU, article 3.3

? The motorised valves comply with the essential requirements of EMC Directive

2014/30/EU (EN-IEC 61000-6-2 and EN-IEC 61000-6-4) and

Low Voltage Directive2014/35/EU (EN-IEC 60730)

? Vacuum operation up to 10-2 mbar

? In option closing of the valve in case of power failure

差壓見“規格”[1 bar = 100 kPa]

較大允許壓力10 bar
