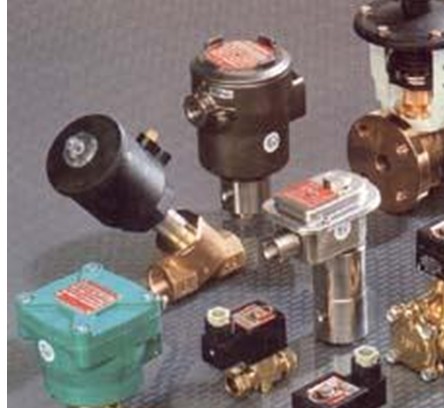

ASCO文件電磁閥，ASCO空氣電磁閥

與流體接觸的材料

（?）確保與材料接觸的流體的兼容性已驗證

主體，端蓋鋁，黑色陽極氧化

端蓋（彈簧復位）玻璃填充聚酰胺

接口板玻璃填充聚酰胺

閥芯內部零件Zamak，不銹鋼，POM，鋁

密封NBR + PUR

芯管和芯管不銹鋼

遮光線圈銅

電氣特性

線圈絕緣等級F

連接器鏟形插頭（電纜直徑6-8 mm或?6-10 mm）

連接器規格DIN 43650，11 mm，工業標準B（類型01）

或ISO 4400 / EN 175301-803，形式A（類型02）

電氣安全I(xiàn)EC 335

電氣外殼防護等級IP65（EN 60529）

標準電壓DC（=）：24V - 48V

（其他電壓和60 Hz請求）AC（?）：24V - 48V - 115V - 230V / 50 Hz

ASCO文件電磁閥，ASCO空氣電磁閥

FEATURES

? The solenoid operated spool valves have threaded port connections and NAMUR

interface

? The same spool valve can be adapted for 3/2 NC or 5/2 functions for controlling

double-acting and single-acting actuators

? All the exhaust ports of this spool valve are connectable, providing better environmental

protection, particularly recommended for sensitive areas, such as clean rooms, and

applications in the pharmaceutical and food processing sectors

? The valves offer environmental protection against the ingress of liquids, dusts or

other foreign matter (environmentally-protected construction)

? The monostable spool valves have TüV certifi ed IEC 61508 Functional Safety data

and can be used up to SIL 4/AK 7

? ASCO/JOUCOMATIC solenoid valves satisfy all relevant EC Directives
