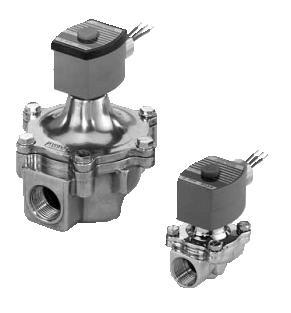

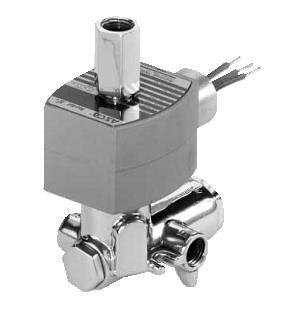

ASCO試點電磁閥，ASCO電磁閥操作

Features

? Compact valves for general service applications

? Low-cost, 4-way valve when low flow is sufficient

maintained between the pressure and exhaust ports.

Supply and exhaust piping must be full area, unrestricted.

ASCO flow controls and other similar components must

be installed in the cylinder lines only.

Refer to Engineering Section for details.

Standard: Watertight, Types 1, 2, 3, 3S, 4, and 4X.

Optional: Explosionproof and Watertight, Types 3, 3S, 4, 4X, 6, 6P, 7, and 9.

(To order, add prefix “EF” or, for Explosionproof Stainless Steel trim and hub

ASCO試點電磁閥，ASCO電磁閥操作

一般服務電磁閥

黃銅和316不銹鋼閥體?1/4“NPT

閥部件與流體接觸

身體黃銅316不銹鋼

密封和圓盤NBR和PA FKM，PA和UR

芯管305不銹鋼

和插頭430F不銹鋼

彈簧302不銹鋼

遮光線圈銅銀

瓦特額定功率

消耗備用線圈部件號

浪涌交流直流交流直流交流直流

F 11.6 10.1 25 50 238610 238710 238614 238714 274614 274714

標準電壓：24,120,240,480伏AC，60Hz（或110,220伏AC，50Hz）。

6,12,24,120,240伏直流。 必須在訂購時。

需要時可提供其他電壓。

ASCO試點電磁閥，ASCO電磁閥操作
