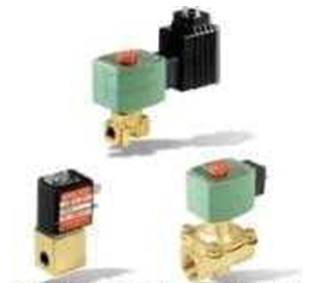

ASCO電磁閥適用于熱水，蒸汽應用

?在壓，高流量系統中的控制

?閥門不需要較工作壓力

?電磁閥采用一體式深拉伸無密封結構

不銹鋼芯管，確保電氣和濕潤的安全操作

移動部件

?閥門采用鍛造黃銅閥體，緊湊設計，較大限度減少熱輻射

失利

?懸掛膜片結構

?電磁閥滿足所有相關的EC指令

ASCO電磁閥適用于熱水，蒸汽應用

GENERAL

Differential pressure  See "SPECIFICATIONS" [1 bar =100 kPa]

Response times  15 - 60 ms

fl uids ( ? ) temperature range (TS) seal materials ( ? )

hot water, steam - 20°C to + 130/150°C EPDM (ethylene propylene)

MATERIALS IN CONTACT WITH FLUID

( ? ) Ensure that the compatibility of the fl uids in contact with the materials is verifi ed

Body  Brass

Core tube  Stainless steel

Core and plugnut  Stainless steel

Springs  Stainless steel

Seat  Brass

Seal, diaphragm & disc  EPDM

Shading coil  Copper

ELECTRICAL CHARACTERISTICS

Coil insulation class  F

Connector  Spade plug (cable ? 6-10 mm)

Connector specifi cation  ISO 4400 / EN 175301-803, form A

Electrical safety  IEC 335

Electrical enclosure protection Moulded IP65 (EN 60529)

Standard voltages  DC (=) : 24V - 48V

(Other voltages and 60 Hz on request)  AC (~) : 24V - 48V - 115V - 230V / 50 Hz

ASCO電磁閥適用于熱水，蒸汽應用
