ASCO先導閥常閉，直接操作

特征

?用于集塵器服務的雙向數控先導閥

?常閉直接動作

?堅固的鍛造黃銅車身結構

?專為面板安裝

?緊湊，重量結構

?組件符合所有相關的EC指令

施工

身體黃銅

芯管不銹鋼

和螺母不銹鋼

彈簧不銹鋼

遮光線圈銅

連接鏟2x DIN-46244（A 6.3x0.8）或

帶引線的線圈460mm

ASCO先導閥常閉，直接操作

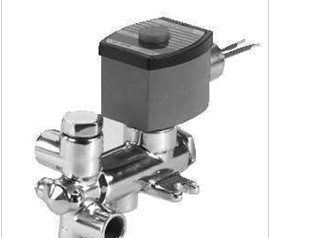

The solenoid valves are open frame constructions, designed for panel mount or stand alone and can be installed in any

position without affecting operation

?  Recommended maximum panel thickness is 6,0 mm and panel passage ? 20 mm

?  Installation/maintenance instructions are included with each valve

?  Replacement coils are available

Epoxy moulded leaded coils or coils with spade plug connector (3 x DIN-46244)

?  Pipe connection E = Rp (ISO 7/1) or compression type fitting inlet

?  Pilot valves can be equipped with explosion proof solenoids for hazardous locations according to

"ATEX" and national standards

ASCO先導閥常閉，直接操作
